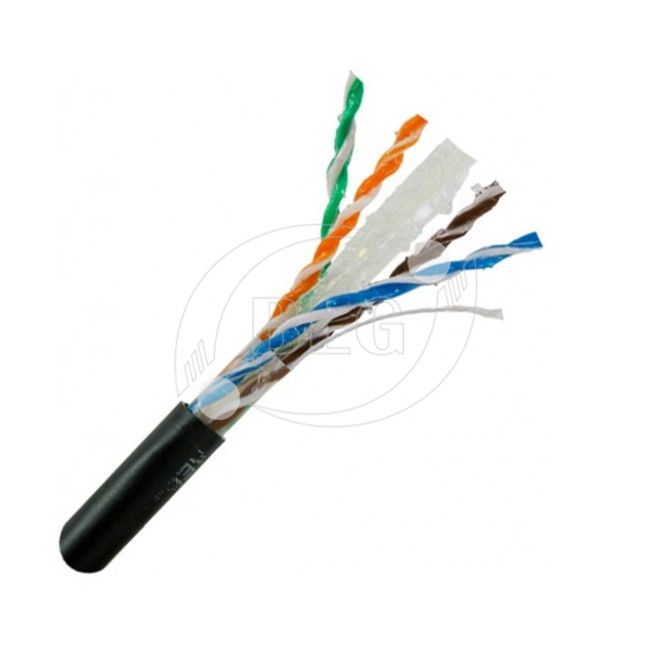

Jelly Filled Cat6 Ethernet LAN Cable 4 Pairs Copper Outdoor Network Cable Wire
Cat6 Jelly Filled Ethernet LAN Cable:
1) CONDUCTOR
- Raw material of the conductor: Bare Copper
- Conductor Diameter: 0.50mm / 0.57mm
2) INSULATION
- Raw material of the conductor: HDPE Insulation
- Quantity: 4 twisted pairs
Blue / white-blue; Green / white-green;
Orange / white-green; Brown / white-brown;
- Insulation Diameter: 1.0 ± 0.02mm
- Average thickness: 0.02245 mm
- Minimum point thickness: 0.2220mm
3) Filler: Cross Separator
4) Jelly Filled
5) Polyester Tape
6) RIP CORD
7) SHEATH
- Sheath material: PE
- Nominal Diameter: 6.30 ± 0.3mm
- Average thickness: 0.55mm
- Minimum point thickness: 0.5mm
Applications:
- 100 Base - TX
- 100 VG - AnyLan
- 1000 Base - T ( Gigabit Ethernet )
- ATM
- Noisy Environments
Description:
Rated Temperature: 60°C, 75°C, 90°C
Solid or Stranded Bare Copper Conductor
PVC or PE or LSZH Jacket, RoHS Compliant
Comply to IEC61156-5, EN50173 & ISO11801
Operating Temperature: - 30°C ~ + 50°C
Minimum Bending Radius: 4D
Electrical Characteristics:
| Frequency (MHz) | Impedance (Ohm) | Return Loss (≥dB) | Attenuation (≤dB/100m) | NEXT (≥dB/100m) | ELFEXT (≥dB/100m) | PS-NEXT (≥dB/100m) | PS-ELFEXT (≥dB/100m) | Delay Skew (ns/100m) | NVP |
| 1 | 100±15 | 20.0 | 1.9 | 74.3 | 67.8 | 72.3 | 64.8 | ≤45 | 68% |
| 4 | 23.0 | 3.7 | 65.3 | 55.8 | 63.3 | 57.7 |
| 10 | 25.0 | 5.9 | 59.3 | 47.8 | 57.3 | 44.8 |
| 16 | 25.0 | 7.5 | 56.3 | 43.7 | 54.3 | 40.7 |
| 20 | 25.0 | 8.4 | 54.8 | 41.8 | 52.8 | 38.7 |
| 31.25 | 23.6 | 10.6 | 51.9 | 37.9 | 49.9 | 34.9 |
| 62.5 | 21.5 | 15.4 | 47.4 | 31.9 | 45.4 | 28.8 |
| 100 | 20.0 | 19.8 | 44.3 | 27.8 | 42.3 | 24.8 |
| 150 | 18.8 | 25.1 | 41.4 | 23.9 | 39.4 | 20.9 |
| 200 | 18.0 | 29.0 | 39.8 | 21.8 | 37.8 | 18.7 |
| 250 | 17.3 | 32.8 | 38.3 | 19.8 | 36.3 | 16.8 |
| * 350 | 100 ± 20 | 16.3 | 39.8 | 36.1 | 16.9 | 34.1 | 13.9 |
| * 400 | 15.9 | 43.0 | 35.3 | 15.7 | 33.7 | 12.7 |
| * 450 | 100 ± 22 | 15.5 | 46.3 | 34.3 | 14.7 | 32.5 | 11.7 |
| * 500 | 15.2 | 48.9 | 33.8 | 13.8 | 31.8 | 10.8 |
| * 550 | 14.9 | 51.8 | 33.2 | 12.9 | 31.2 | 9.9 |
Remarks: * are the reference values
Packaging Details:
1. 305M / Roll / Color Pull Box, 2 Boxes / Carton
For 20’GP container: 700 Rolls
For 40’HQ container: 1700 Rolls
2. 200M / 270M per Roll or 500M / Wooden Drum are Available
3. Customized Package are Available
Delivery time:
As for one 40'HQ container, we can finish them 10 - 15 days after receiving the deposit and we usually complete the order within 7 - 15 days. It also depends on the items and the order quantities.
Payment terms:
1) L / C at Sight
2) T / T: 30% Deposit by T / T, 70% Balance by T / T Before Shipment
3) Western Union: 30% Deposit, 70% Balance Before Shipment
