FTP Cat7 8P8C RJ45 Male Connector Matal Shielded With Tail Clip / PC Housing

Product Categories
SHENZHEN BLG DIGITAL NETWORK CO., LIMITED
Contact Now

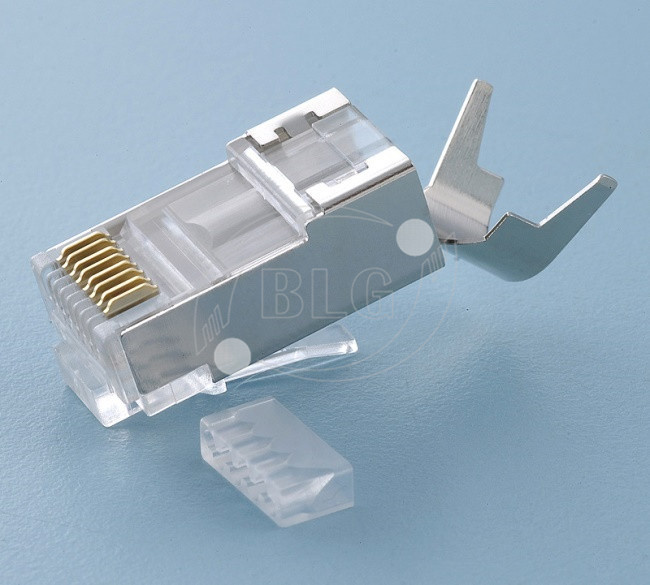

FTP Cat7 8P8C RJ45 Male Connector Matal Shielded With Tail Clip / PC Housing

  • 1
  • 2
  • 3

Brand Name : BLG / OEM / ODM

Model Number : RJ45 CONNECTOR

Certification : CE / ROHS / ISO

Place of Origin : CHINA

MOQ : 5000 Pieces

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 5000000 Pieces Per Week

Delivery Time : 10 - 15 Work Days

Packaging Details : 1000 Pieces / Bag, 10 Bags / Carton

Item : Connector

Type : RJ45 Male Plug

Housing Material : PC

Shield : Matel Shielded

Contact : 8P8C

Gold Plated : Fu’’ ~ 50u’’

Contact Now

Network Cable Accessories FTP Cat7 8P8C RJ45 Male Connector with Tail Clip

Inspection for Environmental Protection:

  • Based on the performed tests on submitted sample,
  • The test results are compliant with the limits of ROHS and REACH.

Electrical Test:

  • 250V AC max, at 2A
  • Dielectric withstanding 1000V / DC / min, < 0.5A
  • Insulation Resistance: > 500M, 1000V / DC / min
  • Contact Resistance: < 20m

Gold Plate Inspection:

  • Per MIL - G - 4520C, Type II ( 99% pure gold minimum )
  • Grade: C+
  • Class 1

Mechanical:

  • Cable - to - plug tensile strength - 20LBs ( 89N ) min
  • Durability: 2000 mating cycles

Material & Finish:

  • Housing Material: Polycarbonate ( PC. )
  • Contact Blade: High Strength Copper Alloy; 100 Micro Inches Mickel Under Plated & Gold Selected.

Operating Temperature: - 40 °C ~ + 125 °C

Package:

  • 1000PCS / Bag, 10 Bags / Carton
  • 10PCS / Small Bag, 100 Bags / Carton
  • Customized Package Available

FTP Cat7 8P8C RJ45 Male Connector Matal Shielded With Tail Clip / PC Housing

FTP Cat7 8P8C RJ45 Male Connector Matal Shielded With Tail Clip / PC Housing
