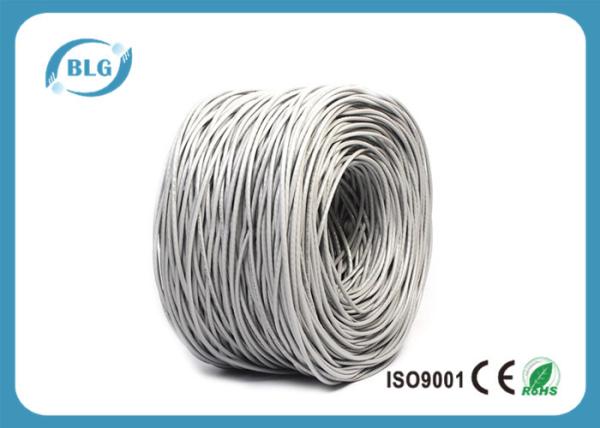

Telecommunication CAT 5e Network Cable Solid or Stranded 24AWG 26AWG Full Copper

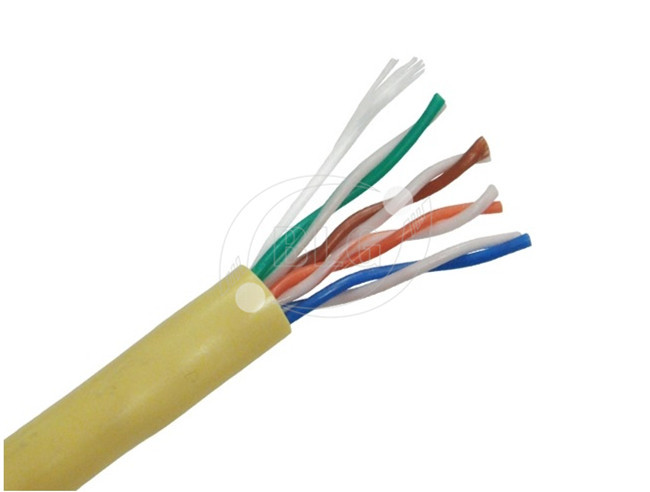

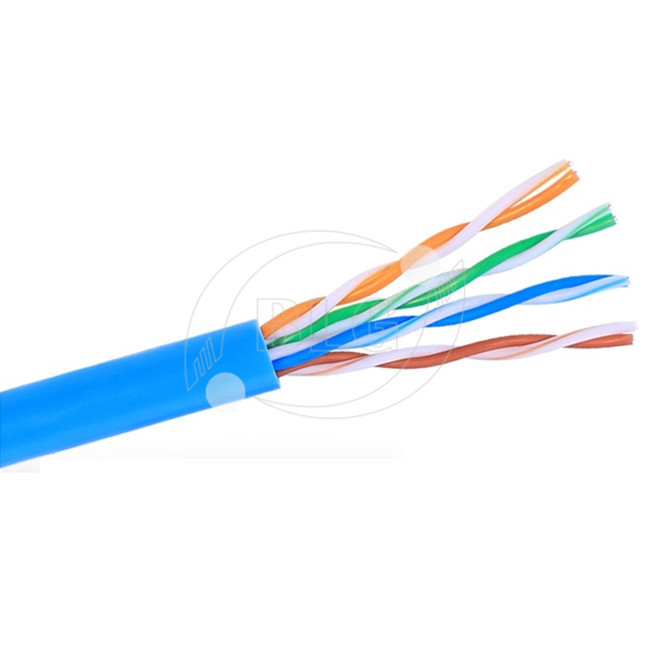

Cat5e LAN Cable Construction:
Indoor 4 * 2 * 24AWG CU UTP Cat5e Cable, HDPE Insulation, Ripcord, PVC Jacket
1) CONDUCTOR
- Raw material of the conductor: Bare Copper / Copper Clad Aluminum
- Conductor Diameter: 24AWG / 26AWG / 28AWG
2) INSULATION
- Raw material of the conductor: HDPE / PE
- Quantity: 4 twisted pairs / 8 cores
- Insulation Diameter: 0.91 ± 0.02mm
3) RIP CORD
4) JACKET
- Jacket material: PVC / LSZH
- Nominal Diameter: 5.3 ± 0.2mm
- Average thickness: 0.55mm
- Minimum point thickness: 0.5mm
| Paired | Number of Pair | 4 Pairs |
| Pair Identification | Pair 1: Blue,White / Blue |
| Pair 2: Orange,White / Orange |
| Pair 3: Green,White / Green |
| Pair 4: Brown,White / Brown |
Cat5e LAN Cable Description:
- Rated Temperature: 60°C, 75°C, 90°C
- Solid or Stranded Bare Copper Conductor
- PVC or PE or LSZH Jacket, RoHS Compliant
- Comply to ANSI / TIA - 568 - C.2 & ISO / IEC 11801
- Installation Temperature: - 30°C ~ + 50°C
- Minimum Bending Radius: > 4P 4D
Cat5e LAN Cable Standard:
ANSI / TIA / EIA - 568B, ISO / IEC11801
Cat5e LAN Cable Electrical Characteristics:
| Frequency (MHz) | Impedance (Ohm) | Return Loss (≥dB) | Attenuation (≤dB/100m) | NEXT (≥dB/100m) | ELFEXT (≥dB/100m) | PS-NEXT (≥dB/100m) | PS-ELFEXT (≥dB/100m) | NVP |
| 1 | 100±15 | 20.0 | 2.0 | 65.3 | 63.8 | 62.3 | 60.8 | 68% |
| 4 | 23.0 | 4.1 | 56.3 | 51.7 | 53.3 | 48.7 |
| 10 | 25.0 | 6.5 | 50.3 | 43.8 | 47.3 | 40.8 |
| 16 | 25.0 | 8.2 | 47.3 | 39.7 | 44.2 | 36.7 |
| 20 | 25.0 | 9.3 | 48.5 | 37.7 | 42.8 | 34.7 |
| 31.25 | 23.6 | 11.6 | 42.9 | 33.9 | 39.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 27.8 | 35.4 | 24.8 |
| 100 | 20.1 | 22.0 | 35.3 | 23.8 | 32.3 | 20.8 |
Cat5e LAN Cable Packaging Details:
1. 305M / Roll / Color Pull Box, 2 Boxes / Carton
For 20’GP container: 1000 Rolls
For 40’HQ container: 2400 Rolls
2. 200M / 270M per Roll or 500M / Wooden Drum are Available
3. Customized Package are Available
Cat5e LAN Cable Delivery time:
As for one 40'HQ container, we can finish them 10 - 15 days after receiving the deposit and we usually complete the order within 7 - 15 days. It also depends on the items and the order quantities.
Cat5e LAN Cable Payment terms:
1) L / C at Sight
2) T / T: 30% Deposit by T / T, 70% Balance by T / T Before Shipment
3) Western Union: 30% Deposit, 70% Balance Before Shipment
