High Performance FTP Cat5e Computer Network Cable With Polyester Tape Black

Product Categories
SHENZHEN BLG DIGITAL NETWORK CO., LIMITED
Contact Now

High Performance FTP Cat5e Computer Network Cable With Polyester Tape Black

Brand Name : BLG/OEM/ODM

Model Number : CAT5E FTP

Certification : CE/ROHS/ISO

Place of Origin : CHINA

MOQ : 50 Rolls

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 3000 Rolls per Week

Delivery Time : 10-15 Work Days

Packaging Details : 305M/Roll/Easy Pull Box, 2 Boxes/Carton

Item : Cat5e FTP Cable

Conductor : 0.50mm BC, CCA, CCS

Insulation : HDPE

Pair : 4 Pairs

Shielded : PET + Al Foil

Jacket : Polyvinyl Chloride

Contact Now

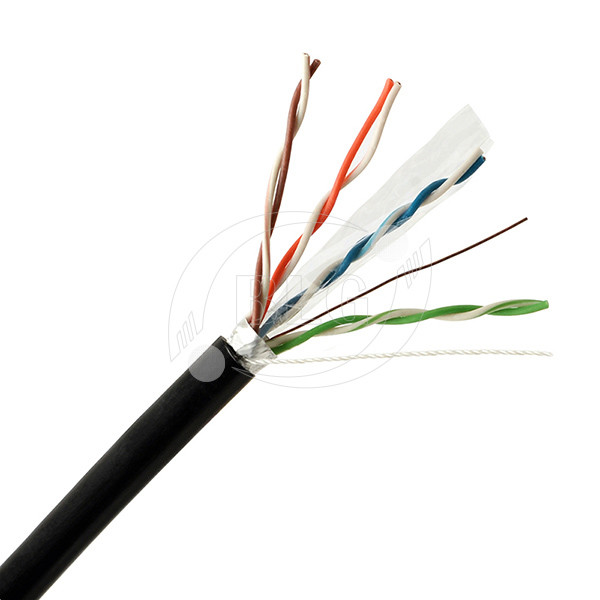

FTP Cat5e Ethernet LAN Cable with Polyester Tape and Al Foil Shielded

High performance ANSI/TIA/EIA 568C.2 compliance Category 5e UTP cables for mission critical LAN applications or Structured Cabling Systems at affordable prices.

Construction
Type of LAN Cable Indoor Cable Cat5e FTP
Conductor Material CU/CCA/CCS/CCAM
Conductor Diameter 24AWG Solid or Stranded
Insulation Material HDPE
Insulation Diameter 0.95±0.06mm
Cores/Pairs 8/4
Shielded Polyester + Al Foil
Drain Wire Solid or Stranded
Ripcord Nylon
Sheath Material PVC, LSZH
Outer Diameter 6.2±0.1mm

Mechanical Properties
Elongation Min. 300%
Temperature Range -20 up to +75°C
Tensile strength Min.1.68Kg/mm2

Electrical Properties (at 20°C)
Conductor Resistance Max.9.38Ω/100m
Resistance Unbalance Max.2%
Insulation Resistance Max.150Ω/Km
Mutual Capacitance Max.5600pF/100m
Capacitance Unbalance Max.330pF/100m
Impedance 100±15
Spark Test 2000v
Velocity of Propagation 67%

Application
Ethernet 10 Base-T
100 Base-T4 ATM
TP-PMD Seppch Telephone
Multimedia Trunk Wiring

Packing Details 305 Meters/Roll/Easy Pull Box, 2 Boxes/Carton
Delivery Details 10~15 Days After the Order Confirmed

Our Services

  • Location: our factory is located in Longgang District, Shenzhen, more flexible shipping and delivery.
  • Capability of 30,000 boxes per week.
  • OEM or ODM is available, we can print your brand on cable and packing.
  • Delivery on time, no any delay.
  • CE/ISO/RoHS certificated.
