Braiding Shield RG6 Coaxial Cable / Black Low Loss Microwave Coaxial Cable

Product Categories

SHENZHEN BLG DIGITAL NETWORK CO., LIMITED

Contact Now

Name: Braiding Shield RG6 Coaxial Cable Black Low Loss Microwave Coaxial Cable
Brand: BLG / OEM
Price: 1 USD

Brand Name : BLG / OEM

Model Number : RG6 Coaxial Cable

Certification : CE / ROHS / ISO

Place of Origin : China

MOQ : 10000 Meters

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2 container

Delivery Time : 7~10 working days

Packaging Details : 100m/ roll, 305m/reel .

Number of Conductor : 1* 18AWG

Condcutor Material : CCA/ CCS

Packing : Wooden roller

Shield : Al foil/braiding

Jacket : PVC White

Application : CCTV&CATV

Contact Now

75 Ohm 18 AWG CCS RG6 Satellite Coaxial Cable For TV /

CATV / Satellite / Antenna / CCTV

Inner Conductoring Net	CCS, CCA, CU
Dielectric	Foam PE or Solid PE
Al Foil	Bonded, Non-bonded, Single, Double
Braiding Wire Material	Cu, Al-Mg, TC
Braiding Wire Diameter	0.12mm, 0.15mm, 0.16mm
Braiding Net	48, 64, 72, 80, 96, 128 and more
Coverage	40%, 50%, 60%, 80%, 90% and more
PVC Degree	60, 65, 68, 70,75
Jacket	PE or PVC

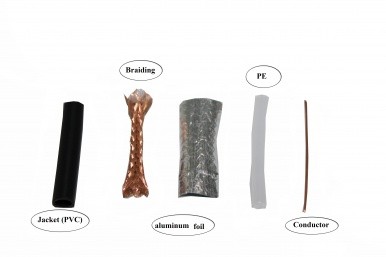

Construction	1.02mm CCS + 4.6mm FPE + AL Foil Bonded + 96*0.12mm Al Braiding 60% coverage + 6.91mm PVC

Characteristics:

Application:

Coaxial Cable RG6 75ohm (For CCTV)

Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable

for satellite systems where lower attenuation required

Braiding Shield RG6 Coaxial Cable / Black Low Loss Microwave Coaxial Cable

Product Tags:

low loss coaxial cable
