FTP Cat5e Ethernet Cable Al Foil Shield Computer 4 Pairs 24AWG Bare Copper 305M Pull Box Package
Application:
- Ethernet
- 10 Base - T
- 100 Base - T4
- ATM
- TP - PMD Seppch
- Telephone
- Multimedia
- Trunk Wiring
Product Description:
- Rated Temperature: 60°C, 75°C, 90°C
- Bare Copper Conductor
- Shield with Al Foil
- RoHS / CE Complied PVC / LSZH Jacket
- Complies to ANSI / TIA - 568 - C. 2 & ISO / IEC11801
- Installation Temperature: - 30 °C ~ + 50 °C
- Minimum Bending Radius: 4D

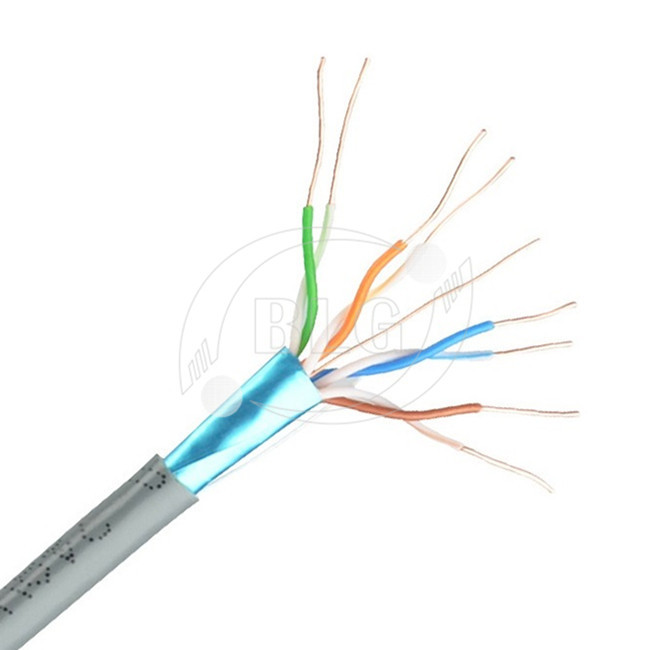

Cable Construction:
Indoor 4 * 2 * 24AWG / 26AWG BC / CCA FTP Cat5e Cable, HDPE Insulation, Polyester Tape, Drain Wire, Al Foil Shielded, Ripcord, PVC / LSZH Jacket
Conductor
- Raw material of the conductor: Bare Copper / Copper Clad Aluminum
- Conductor Diameter: 24AWG / 26AWG / 28AWG
Insulation
- Raw material of the conductor: HDPE / PE
- Quantity: 4 twisted pairs / 8 cores
- Pair 1: Orange / White - Orange; Pair 2: Green / White - Green
- Pair 3: Blue / White - Blue; Pair 4: Brown / White - Brown
- Insulation Diameter: 0.91 ± 0.02mm
Polyester Tape
Drain Wire
Al Foil Shield
Rip Cord
Jacket
- Jacket material: PVC / LSZH
- Nominal Diameter: 6.3 ± 0.2mm
- Average thickness: 0.55mm
- Minimum point thickness: 0.5mm
Electrical Characteristics:
| Frequency (MHz) | Impedance (Ohm) | Return Loss (≥dB) | Attenuation (≤dB/100m) | NEXT (≥dB/100m) | ELFEXT (≥dB/100m) | PS-NEXT (≥dB/100m) | PS-ELFEXT (≥dB/100m) | NVP |
| 1 | 100±15 | 20.0 | 2.0 | 65.3 | 63.8 | 62.3 | 60.8 | 68% |
| 4 | 23.0 | 4.1 | 56.3 | 51.7 | 53.3 | 48.7 |
| 10 | 25.0 | 6.5 | 50.3 | 43.8 | 47.3 | 40.8 |
| 16 | 25.0 | 8.2 | 47.3 | 39.7 | 44.2 | 36.7 |
| 20 | 25.0 | 9.3 | 48.5 | 37.7 | 42.8 | 34.7 |
| 31.25 | 23.6 | 11.6 | 42.9 | 33.9 | 39.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 27.8 | 35.4 | 24.8 |
| 100 | 20.1 | 22.0 | 35.3 | 23.8 | 32.3 | 20.8 |
| * 155 | 100 ± 18 | 18.8 | 28.1 | 32.4 | 20.2 | 29.4 | 17.2 |
| * 200 | 18.0 | 32.4 | 30.8 | 18.0 | 27.8 | 15.0 |
| * 310 | 100 ± 22 | 16.7 | 41.8 | 27.9 | 14.2 | 24.9 | 11.2 |
| * 350 | 16.3 | 44.9 | 27.1 | 13.1 | 24.1 | 10.1 |
Remarks: * are the reference values

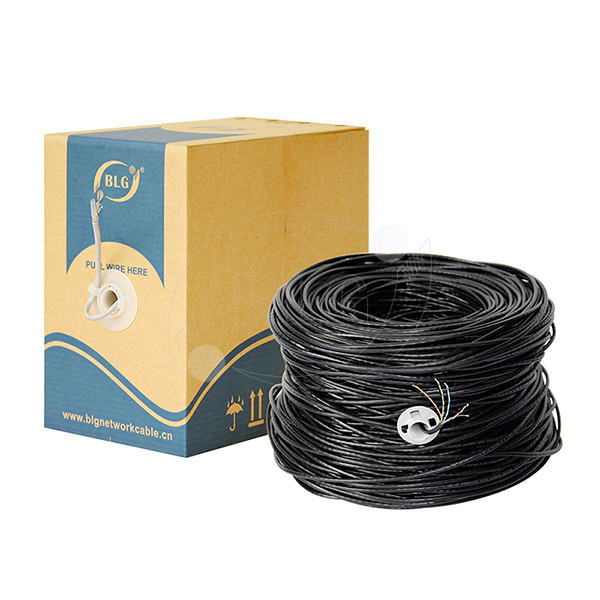

Packaging details:
1. Inner Packing: 305 Meters / Roll / Box, 2 Boxes / Carton
For 20’GP Container: 840 Rolls Can be Fully Filled In
For 40’HQ Container: 2060 Rolls Can be Fully Filled In
2. 500M / 1000M Each Drum is Available
3. Other Packing: as customer's request
Delivery time:
As for one 40'HQ container, we can finish them 10 - 15 days after receiving the deposit and we usually complete the order within 7 -15 days. It also depends on the items and the order quantities.
Payment terms:
1) L / C at sight
2) T / T: 30% deposit by T / T, 70% balance by T / T before shipment
3) Western Union: 30% deposit, 70% balance before shipment
