FTP Foil Shielded Cat5e Cable with Steel Messenger Outdoor Wiring 0.51mm OFC Ethernet
Application:
100Base-TX
100Base-T4
100VG-AnyLAN
1000Base-T (Gigabit Ethernet)
Outdoors Wiring
Product Description:
Rated Temperature: 60°C, 75°C, 90°C
Solid Bare Copper Conductor
RoHS / CE Complied PE Jacket
Complies to ANSI / TIA - 568 - C.2 & ISO / IEC 11801
Installation Temperature: - 30 °C ~ + 50 °C
Minimum Bending Radius: 4D

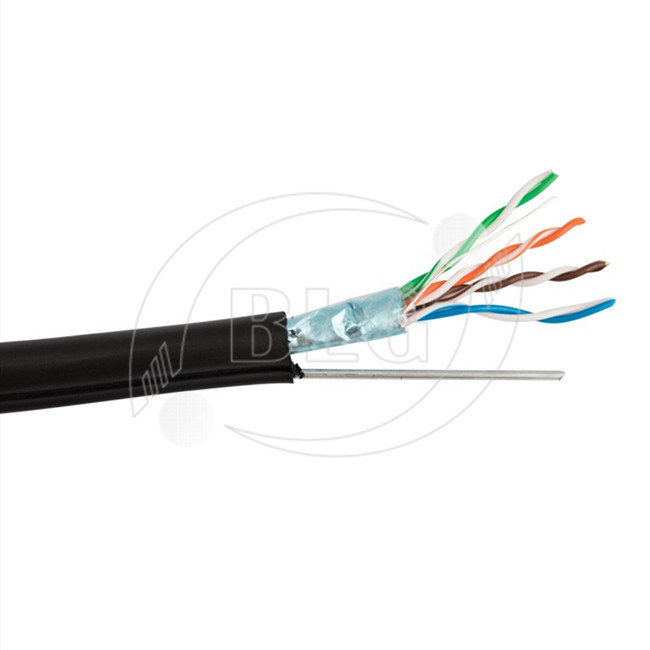

Cable Construction:
CONDUCTOR
- The raw material of conductor: OFC / Oxygen Free Copper
- Conductor Diameter: 24AWG / 0.50mm
INSULATION
- The raw material of conductor: HDPE / PE
- Quantity: 4 twisted pairs / 8 cores
- Pair 1: Orange / White - Orange; Pair 2: Green / White - Green
- Pair 3: Blue / White - Blue; Pair 4: Brown / White - Brown
- Insulation Diameter: 0.91 ± 0.02mm
POLYESTER TAPE
DRAIN WIRE: 0.35 / 0.40mm CCA / CCS
SHIELD: Aluminum Foil
RIP CORD
JACKET
- Jacket material: Black PE
- Nominal Diameter: 6.4 * 9.0mm
WEB
MESSENGER
- Material: Steel Wire
- Jacket: PE
Cable Construction:
| Item No. | Construction | Conductor AWG | Nomial Insulation Diameter mm | No. of Pairs | Nomial Cable OD. | Type of Jacket | Remark |
| 05212400M1 | AERIAL FTP | 24 | 0.93 | 4 | 6.4 * 9.0 | PE | 100MHz |
| 05212400M2 | AERIAL FTP | 24 | 0.94 | 4 | 6.5 * 9.0 | PE | 350MHz |
Electrical Characteristics:
| Frequency (MHz) | Impedance (Ohm) | Return Loss (≥dB) | Attenuation (≤dB/100m) | NEXT (≥dB/100m) | ELFEXT (≥dB/100m) | PS-NEXT (≥dB/100m) | PS-ELFEXT (≥dB/100m) | NVP |
| 1 | 100 ± 15 | 20.0 | 2.0 | 65.3 | 63.8 | 62.3 | 60.8 | 68% |
| 4 | 23.0 | 4.1 | 56.3 | 51.7 | 53.3 | 48.7 |
| 10 | 25.0 | 6.5 | 50.3 | 43.8 | 47.3 | 40.8 |
| 16 | 25.0 | 8.2 | 47.3 | 39.7 | 44.2 | 36.7 |
| 20 | 25.0 | 9.3 | 48.5 | 37.7 | 42.8 | 34.7 |
| 31.25 | 23.6 | 11.6 | 42.9 | 33.9 | 39.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 27.8 | 35.4 | 24.8 |
| 100 | 20.1 | 22.0 | 35.3 | 23.8 | 32.3 | 20.8 |
| * 155 | 100 ± 18 | 18.8 | 28.1 | 32.4 | 20.2 | 29.4 | 17.2 |
| * 200 | 18.0 | 32.4 | 30.8 | 18.0 | 27.8 | 15.0 |
| * 310 | 100 ± 22 | 16.7 | 41.8 | 27.9 | 14.2 | 24.9 | 11.2 |
| * 350 | 16.3 | 44.9 | 27.1 | 13.1 | 24.1 | 10.1 |
Remarks: * are the reference values
Packaging Details:

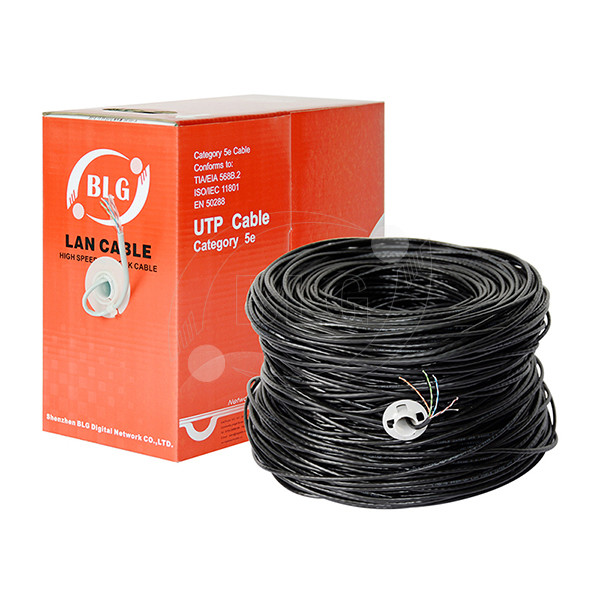

1. 305M / Roll / Color Pull Box, 2 Boxes / Carton
For 20’GP container: 700 Rolls
For 40’HQ container: 1700 Rolls
2. 200M / 270M per Roll or 500M / Wooden Drum are Available
3. Customized Package are Available
Delivery time:
As for one 40'HQ container, we can finish them 10 - 15 days after receiving the deposit and we usually complete the order within 7 - 15 days. It also depends on the items and the order quantities.
Payment terms:
1) L / C at Sight
2) T / T: 30% Deposit by T / T, 70% Balance by T / T Before Shipment
3) Western Union: 30% Deposit, 70% Balance B
