4 Pairs Cat5e Network Ethernet Cable UTP Communication 24AWG Solid Conductor

Product Categories
SHENZHEN BLG DIGITAL NETWORK CO., LIMITED
Contact Now

4 Pairs Cat5e Network Ethernet Cable UTP Communication 24AWG Solid Conductor

Brand Name : BLG / OEM / ODM

Model Number : CAT5E LAN Cable

Certification : CE / ROHS / ISO

Place of Origin : CHINA

MOQ : 100 Rolls

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 3000 Rolls per Week

Delivery Time : 7 - 15 Work Days

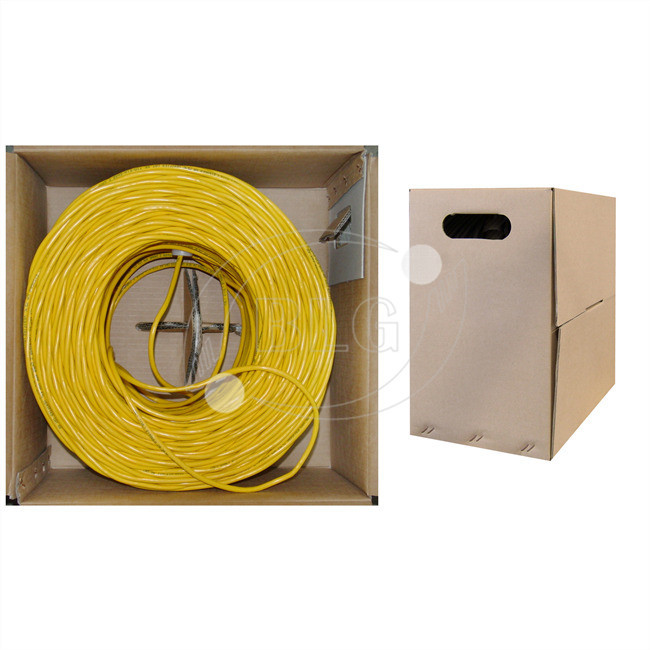

Packaging Details : 305M / Roll / Easy Pull Box, 2 Boxes / Carton

Cable Type : UTP Cat5e LAN Cable

Conductor Diameter : 28AWG / 26AWG / 24AWG

Conductor Material : BC / CCAG / CCA / CCS

Insulation : HDPE / PE

Ripcord : Nylon or Optional

Jacket : PVC / LSZH

Contact Now

4 Pairs Cat5e LAN Cable 24AWG Solid Conductor UTP Communication Cable

Cable Construction:

1) CONDUCTOR

  • Raw material of the conductor: Bare Copper / Copper Clad Aluminum
  • Conductor Diameter: 24AWG / 26AWG / 28AWG

2) INSULATION

  • Raw material of the conductor: HDPE / PE

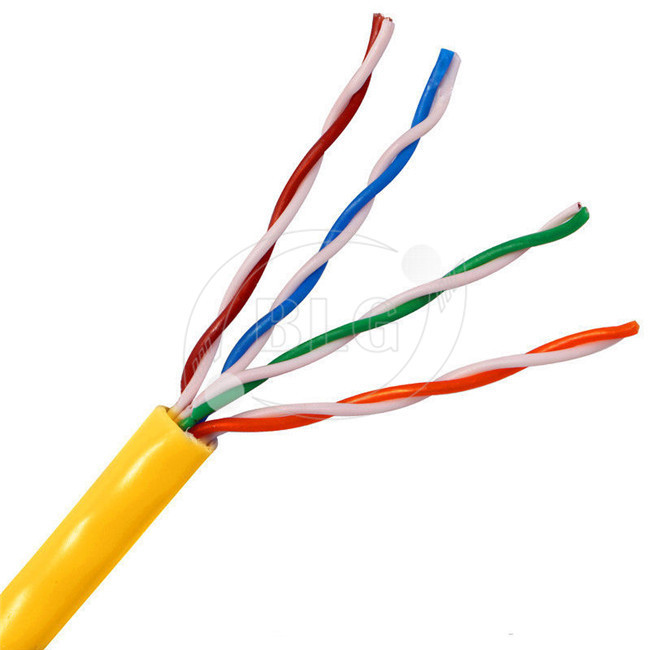

  • Quantity: 4 twisted pairs / 8 cores
  • Pair 1: Orange / White - Orange; Pair 2: Green / White - Green
  • Pair 3: Blue / White - Blue; Pair 4: Brown / White - Brown
  • Insulation Diameter: 0.91 ± 0.02mm

3) RIP CORD

4) JACKET

  • Jacket material: PVC / LSZH
  • Nominal Diameter: 5.3 ± 0.2mm
  • Average thickness: 0.55mm
  • Minimum point thickness: 0.5mm

Item Indoor Cat5e LAN Cable
Conductor Conductor Diameter 24AWG / 26AWG / 28AWG
Conductor Material BC / CCAG / CCA / CCS
Type of Conductor Solid or Stranded
Insulation Diameter 0.90±0.01
Material HDPE
Jacket Jacket Diameter 5.1±0.1
Jacket Material PVC / LSZH

Paired Number of Pair 4 Pairs
Pair Identification Pair 1: Blue,White / Blue
Pair 2: Orange,White / Orange
Pair 3: Green,White / Green
Pair 4: Brown,White / Brown

4 Pairs Cat5e Network Ethernet Cable UTP Communication 24AWG Solid Conductor4 Pairs Cat5e Network Ethernet Cable UTP Communication 24AWG Solid Conductor
