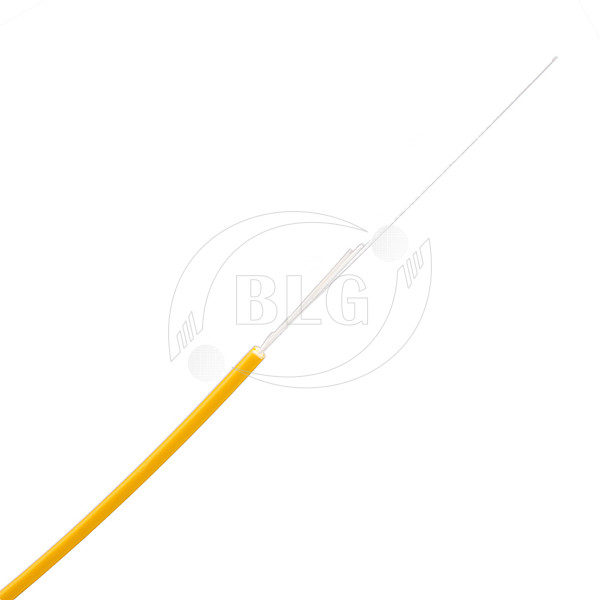

Simplex Indoor Bulk Fiber Optic Cable With Tight Buffer 9 / 125 Or 50 / 125

Brand Name : BLG / OEM / ODM

Model Number : FIBER OPTIC CABLE

Certification : CE / ROHS / ISO

Place of Origin : CHINA

MOQ : 2000 Meters

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000 Kilometers per Week

Delivery Time : 10 - 15 Work Days

Packaging Details : 2000M / Wooden Reel

Item : Fiber Optical Cable

Fiber Type : 9 / 125, 50 / 125, 62.5 / 125

Number of Fiber : 1 Fiber

Strength Member Material : Aramid Yarn

Jacket : PVC / LSZH

Package : 3000M or 6000M / Wooden Drum or As Requested

Contact Now

Simplex Indoor Bulk Fiber Optic Cable with Tight

Buffer 9 / 125 or 50 / 125

  • Description

Indoor fiber optical cable is made by evenly applying strands of Aramid yarns as the strength member over tight buffer fibers and then is completed with a flame - retardant sheath.

  • Characteristics

· Good uniformity of the outer diameter of tight buffer fiber and excellent

Strippability
· Good performance of flame-retardant
· Low induced attenuation within the operating temperature range
· Excellent geometrical dimension of the fiber

  • Application

· Data communication
· Making connector
· Installation: riser, plenum, etc.
· Places where waterproof is not strictly required
· Making jumper, pigtail and building distribution

  • Description

· 1fiber, Φ900μm or Φ600μm Tight buffer fiber, Aramid yarn, PVC Jacket.

  • Standards

· Comply with Standard YD / T 1258. 2 - 2003, ICEA - 596, GR - 409, IEC794, etc.

  • Geometical Characteristics
Simplex Cable Type Φ3.0 Φ2.4 Φ2.0 Φ1.6
Simplex Cable Diameter ( mm ) 2.85 2.4 2 1.6
Simplex Cable Weight ( kg / km ) 6.5 5 3.2 2.9
TBF Diameter ( um ) 900 ± 50

  • Mechanical Characteristics
Tensile Strength ( N ) Long Term 80N 60N
Short Term 150N 120N
Crush Resistance ( N ) Long Term 100N / 100mm
Short Term 500N / 100mm
Bending Radius ( mm ) Dynamic 20 x D ( Cable Diameter )
Static 10 x D ( Cable Diameter )

  • Fiber Characteristics
50 / 125μm 62.5 / 125μm G.652 G.655
Attenuation ( + 20 °C ) @ 850nm ≤ 3.5dB / km ≤ 3.5dB / km
@ 1300nm ≤ 1.5dB / km ≤ 1.5dB / km
@ 1310nm ≤ 0.45dB / km ≤ 0.50dB / km
@ 1550nm ≤ 0.30dB / km ≤ 0.50dB / km
Bandwidth ( Class A ) @ 850nm ≥ 500MHz · km ≥ 200MHz · km
@ 1300nm ≥ 1000MHz · km ≥ 600MHz · km
Numerical Aperture 0.200 ± 0.015 NA 0.275 ± 0.015 NA
Cable Cut - off Wavelength λcc ≤ 1260nm ≤ 1480nm
Attenuation at temperature cycling Δα ( - 20 °C ~ + 85 °C ) @ 1300nm ≤ 0.25dB / km ≤ 0.25dB / km
@ 1550nm ≤ 0.10dB / km ≤ 0.15dB / km

  • Environmental Characteristics
Transport Temperature - 20 °C ~ + 60 °C
Storage Temperature - 20 °C ~ + 60 °C
Installation Temperature - 5 °C ~ + 50 °C
Operating Temperature - 20 °C ~ + 60 °C

Simplex Indoor Bulk Fiber Optic Cable With Tight Buffer 9 / 125 Or 50 / 125
